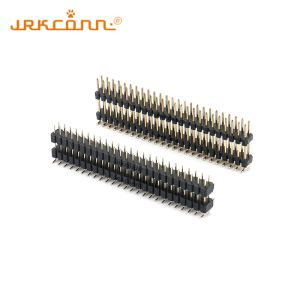

Surface Mount Connector 2.54mm 12P Board To Board Connector Stacking Type Male Header
Features
| Specification | Details |
| Pitch | 1.27mm, 1.778mm, 2.0mm, 2.54mm, 5mm, support customization |
| Row Number | Dual Row |
| Connection Type | SMT |
| Pin Material | Brass |
| Insulation material | PPS, UL94V-0 |
| Pin Number | 4pin ~ 80pin |
| Pin Length | Customized |
| Insulation Height | H=3.0mm |
| Surface Treatment | Gold plating, tin plating |
| Current Rating | 3A |
| Operating Temperature | from -55℃ to 105℃ |
| Soldering Temperature | 260℃,10s max. |
| Application Fields | Communication equipment, machinery manufacturing, industrial control, military industry, electric power, medical equipment, etc. |
Packing & Delivery
Packing:
| Selling Units | Package | Port |
| Single Item | Tube / PE Bag/Tray / Tape&Reel Packing | Shenzhen |
Delivery:
| Quantity (pcs) | Samples | 1 - 100K | > 100K |
| Lead Time (working days) | 3 ~ 7 | 15 | To be negotiated |
Custom Process
Many Machined Pin headers are available that are not listed on the website. If you do not find what you want, please contact us. Kindly contact us if you need the drawing of the product.
How to choose the Machined Male Header Connector:
Tell us the following details before quotation:
- The pitch of the product, the standard is 1.27 mm pitch/ 2.0mm pitch /2.54mm pitch / 5.0mm; special pitch is available.
- The plating of the product, the standard plating is Gold Plating and Tin Plating.
- The material of terminals and insulators, our contact material is brass, and the insulator is PA6T, PA9T, PPS, and PBT for your options.
- Tell us the pin length; it can be customized according to your requirements.
- Product Quantity and your requirements.
Why Choose JRKCONN?
- Over 10 Years of Expertise - With more than a decade of experience in the electronic connector industry, JRK Connectors has built a strong reputation for precision, reliability, and innovation.
- Comprehensive Machining Capabilities - Equipped with a wide range of machining equipment, we can meet diverse metal processing requirements -- from small precision parts to complex custom components.
- High-Precision Manufacturing - Our advanced production facilities ensure exceptional accuracy, small tolerances to meet the highest quality standards.
- Fast and Reliable Lead Time - We understand the importance of timing. Our efficient production and logistics systems guarantee prompt delivery for both small and large orders.
- Responsive Customer Service - Customer satisfaction is our top priority. All inquiries receive prompt feedback; we reply within 24 hours to ensure smooth communication and support.
- Trusted Industry Reputation - JRKCONN connectors are recognized by partners worldwide for our consistent quality, technical expertise, and commitment to excellence in every project.
FAQ
1. Are you a manufacturer or a trade company?
We are a professional manufacturer with 15 years of experience specializing in electronic connectors. Our main products include pin headers, female headers, box headers, ejector headers, DIN 41612 connectors, pins, and other electronic connectors, all of which are of high quality and offered at competitive prices.
2. Can I get the sample before placing a purchase order?
Yes, we provide samples for our customers to check the quality of our products. We recommend that our customers take the samples from us before placing an order. This will help customers to understand our product and quality better. They are free for 1 or 5 pcs samples, customers only pay the express courier cost.
3. What is the sample lead time?
The standard sample delivery date is about 3~5 working days, and the customized samples need 7~10 business days.
4. What is your after-sales service?
If a customer finds a quality problem, please contact us; we will study the problem and provide solutions as fast as possible.
5. How can you guarantee product quality?
Always a pre-production sample before mass production and a final inspection before shipment.
6. Can I make personalized/customized products?
Sure, send us your drawing or sample.
7. How long will it take to ship to my country?
Normally, a sample requires 3-4 days; mass production time is 1-2 weeks for order quantities of more than 10,000 pieces. We can arrange the shipment by DHL, UPS, FedEx, TNT, or any other preferred collector from the customer. It usually takes 7~12 days to arrive. Airline and sea shipping are also optional.
